SCE-V Linear Bearing

SCE-V linear bearing

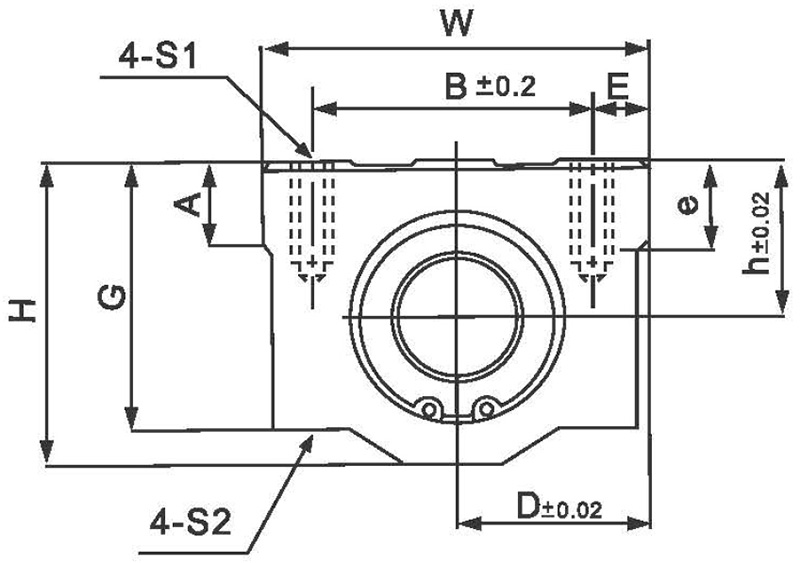

Part Number Main dimensions and Mounting dimensions Basic Load Weight
Rating
h D W H G A B E S1xe S2 C L Dynamc Static
Co N Co N
SCE8VUU 11 17 34 22 18 6 24 5 M4x8 3.4 7.2 14.4 274 392 25
SCE12VUU 15 22 44 30 24.5 8 33 5.5 M5x12 4.3 10.4 20.8 510 784 65
SCE16VUU 19 25 50 38.5 32.5 9 36 7 M6x12 4.3 11.2 22.4 774 1180 100
SCE20VUU 21 27 54 41 35 11 40 7 M6x12 5.2 14.5 29 882 1370 148
SCE25VUU 26 38 76 51.5 42 12 54 11 M8x18 7 20.45 40.9 980 1570 368
SCE30VUU 30 39 78 59.5 49 15 58 10 M8x18 7 24.45 48.9 1574 2740 500
SCE40VUU 40 51 102 78 62 20 80 11 M10x25 8.7 28.2 56.4 2160 4020 1000
SCE50VUU 52 61 122 102 80 25 100 11 M10x25 8.7 36.2 72.4 3820 7940 2205
