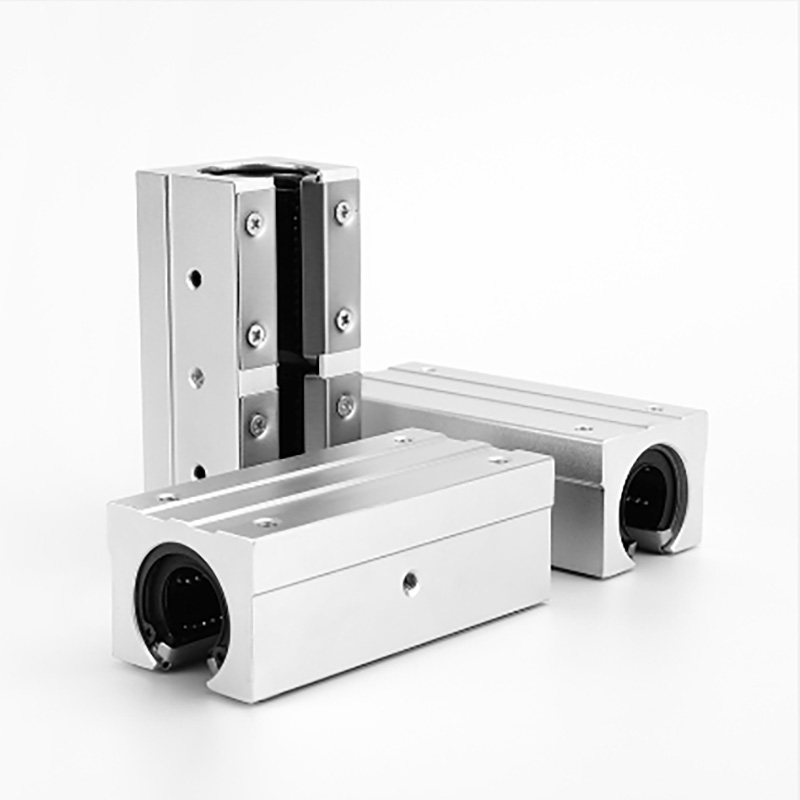

SBR-L Linear Bearing

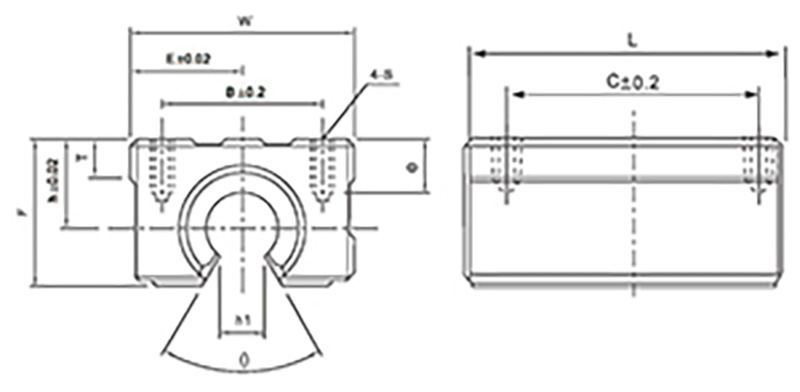

Part Number	Shaft	Main dimensions and Mounting dimenions												Basic Load		Weight
	Diamter	Main dimensions and Mounting dimenions												Rating		Weight
		h	E	W	L	F	T	h1	θ	B	C	S	e	Dynamic	Static
		h	E	W	L	F	T	h1	θ	B	C	S	e	Co N	Co N
SBR10LUU	10	15	18	36	68	24	7	6	80°	25	46	M5	10	38	56	130
SBR12LUU	12	17	20	40	75	27.6	8	8.5	80°	28	50	M5	10	42	61	200
SBR16LUU	16	20	22.5	45	85	33	9	10	80°	32	60	M5	12	52	80	300
SBR20LUU	20	23	24	48	96	39	11	10	60°	35	70	M6	12	59	91	400
SBR25LUU	25	27	30	60	130	47	14	11.5	50°	40	100	M6	12	88	140	900
SBR30LUU	30	33	35	70	140	56	15	14	50°	50	110	M8	18	100	160	1260
SBR35LUU	35	37	40	80	160	63	18	16	50°	55	120	M8	18	160	280	1800
SBR40LUU	40	42	45	90	175	72	20	19	50°	65	140	M10	20	170	320	2660
SBR50LUU	50	53	60	120	215	92	25	23	50°	94	160	M10	20	220	410	6000
